EDIC-LDT-Metamodel ()
EDIC-LDT-Metamodel

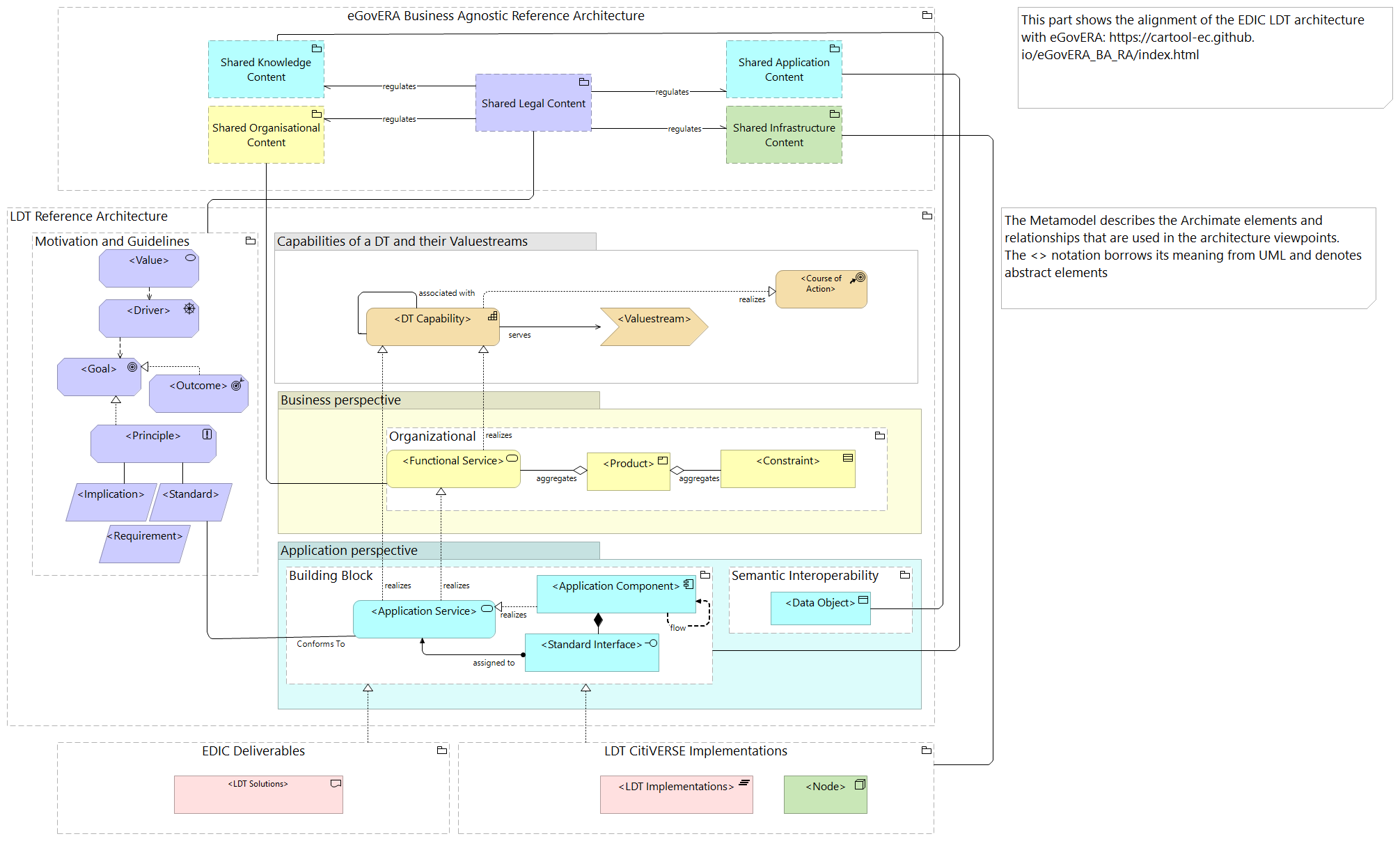

The Metamodel describes the Archimate elements and relationships that are used in the architecture viewpoints. The <> notation borrows its meaning from UML and denotes abstract elements In this view the alignment with eGovERA is also depicted.
eGovERA Business Agnostic Reference Architecture Shared Organisational Content
eGovERA Business Agnostic Reference Architecture Shared Knowledge Content
eGovERA Business Agnostic Reference Architecture Shared Infrastructure Content
eGovERA Business Agnostic Reference Architecture Shared Legal Content
eGovERA Business Agnostic Reference Architecture Shared Application Content
regulates Shared Legal Content Shared Application Content
regulates Shared Legal Content Shared Knowledge Content
regulates Shared Legal Content Shared Infrastructure Content
regulates Shared Legal Content Shared Organisational Content
Shared Legal Content Kaders en richtlijnen
Shared Application Content Bouwblok
Shared Infrastructure Content LDT CitiVERSE Implementations
Shared Organisational Content Organisatie
Shared Knowledge Content <Data Object>
Kaders en richtlijnen <Implicatie>
Kaders en richtlijnen <Driver>
Kaders en richtlijnen <Doel>
Kaders en richtlijnen <Architectuurprincipe>
Kaders en richtlijnen <Standaard>
Kaders en richtlijnen <Requirement>
Kaders en richtlijnen <Value>
Kaders en richtlijnen <Outcome>
<Implicatie> <Architectuurprincipe>
<Architectuurprincipe> <Doel>
<Architectuurprincipe> <Standaard>
<Driver> <Doel>
conformeert aan <Standaard> <Applicatie dienst>
<Value> <Driver>
<Outcome> <Doel>
realiseert <Applicatie Component> <Applicatie dienst>
flow <Applicatie Component> <Applicatie Component>
<Applicatie Component> <Standaard Interface>
realiseert <Applicatie dienst> <DT capability>
realiseert <Applicatie dienst> <Functionele dienst>
Semantic Interoperability <Data Object>
aggregeert <Product> <Functionele dienst>
aggregeert <Product> <Kader / Randvoorwaarde>
realiseert <Functionele dienst> <DT capability>
bedient <DT capability> <Waardestroom>
geassocieerd met <DT capability> <DT capability>
realizes <DT capability> <Course of Action>
toegekend aan <Standaard Interface> <Applicatie dienst>
LDT CitiVERSE Implementations Bouwblok
LDT CitiVERSE Implementations <LDT Implementations>
LDT CitiVERSE Implementations <Node>
EDIC Deliverables Bouwblok
EDIC Deliverables <LDT Solutions>
